BS4568 Casting Malleable Iron Pipe Fittings/ 25mm Galvanized Terminal One-Way Box / Conduit Box ​

Descrition:

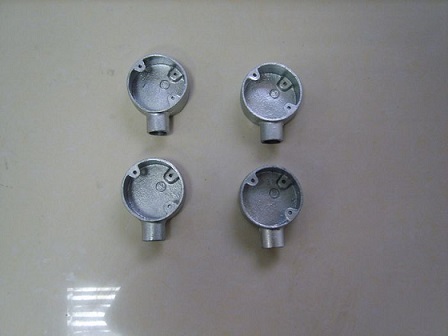

TOPELE Conduit Junction Box One Way, Terminal Box

Conduit fittings one way stop end circular terminal box used in transportation system, automatic equipments, power plants, chemical industry, electric power transmission and distribution system, communication system, ship, building, factory and the protection of wiring.

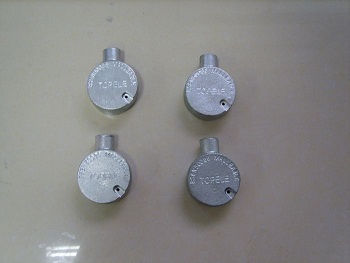

Marking: TOPELE

Material: Malleable Iron

Hot dip galvanized durable and never rusted

Finish: Hot-dip Galvanized, Black

Standard: BS4568/BS31

Size: 20mm, 25mm, 3/4”, 1”

60.3mm Internal Diameter x 25.4mm Deep Tapped M4 in mm sizes and 2BA in imperial sizes of 50.3mm with

tapped hole in base for earthing screw.

Note:

1.With tapped hole in base for earthing screw.

2.Supplied without covers or fixing screws unless ordered.

3.Order 3/4" & 1" when using with BS31 Conduits.

4.Order 20mm,25mm when using with BS4568 Conduits.

5.BS31 boxes also available in cast Iron & finish galvanized coating.

6.Box Covers are available 1.0/1.2mm thickness, finish Hot-Dipped Galvanized;

7.Each box is supplied C/W one regulation Tap Earth Terminal Hole in base;

8.Small and large Circular Boxes available;

9.Deep pattern Boxes available;

10.Full range of Conduit Fittings(Saddles) available to suit different site needs;

11.Good range of other supporting Conduit Fittings available.

Other Junction Boxes:

One way-terminal. Two way-Angle, Two way-U Shape. Two way-Through, Three way-Tee, Three way-Y Shape,

Four Way-Intersection, Four Way-H shape Junction Boxes available

Applications:

TOPELE protect conductors in threaded bs4568 class 4 conduit Conduit Junction Box One Way to protect conductors in threaded rigid conduit, .act as pull and splice boxes, interconnect lengths of conduit, change conduit direction and provide access to conductors for maintenance and future system changes. We supplier only the high quality products,

BS4568 Malleable Iron Junction Boxes:
1. Boxes are manufactured from Malleable Iron, fInish Hot-Dipped Galvanized as standard;
2. Box Covers are available 1.0/1.2mm thickness, finish Hot-Dipped Galvanized;
4. Small and large Circular Boxes available;
5. Deep pattern Boxes available;
6. Full range of Conduit Fittings available to suit different needs;
7. Good range of other supporting Conduit Fittings available.

Specifications:

TOPELE BS4568 Malleable Iron Junction Box- Terminal Way

Size: 20mm, 25mm, 3/4”, 1”

Competitive Advantage:

TOPELE Conduit Junction Box One Way, Terminal Box

+Quick Delivery: 30days for one 20ft container.

+Great service is our mission.

+We can produce items according to your requirements.
+Best service and good quality with competitive price.

+ Good Quality:

+Best Service: fast delivery, strong package, good price, timely and effective communication

+Powerful Solution: fast and effective solution to problem
