    20mm , 25mm Galvanized BS4568 Conduit Pipe , Steel Electrical Conduit GI Tube

    Ask Lasest Price
    Brand Name : TOPELE
    Certification : ISO
    Model Number : BS4568 CONDUIT
    Price : negotiable
    Delivery Time : 20 days for one 20ft container
    Payment Terms : T/T, L/C at sight
    Supply Ability : 500 tons one month
    • Product Details
    • Company Profile

    20mm , 25mm Galvanized BS4568 Conduit Pipe , Steel Electrical Conduit GI Tube


    20mm , 25mm Galvanized BS4568 Conduit Pipe , Steel Electrical Conduit GI Tube


    Description:

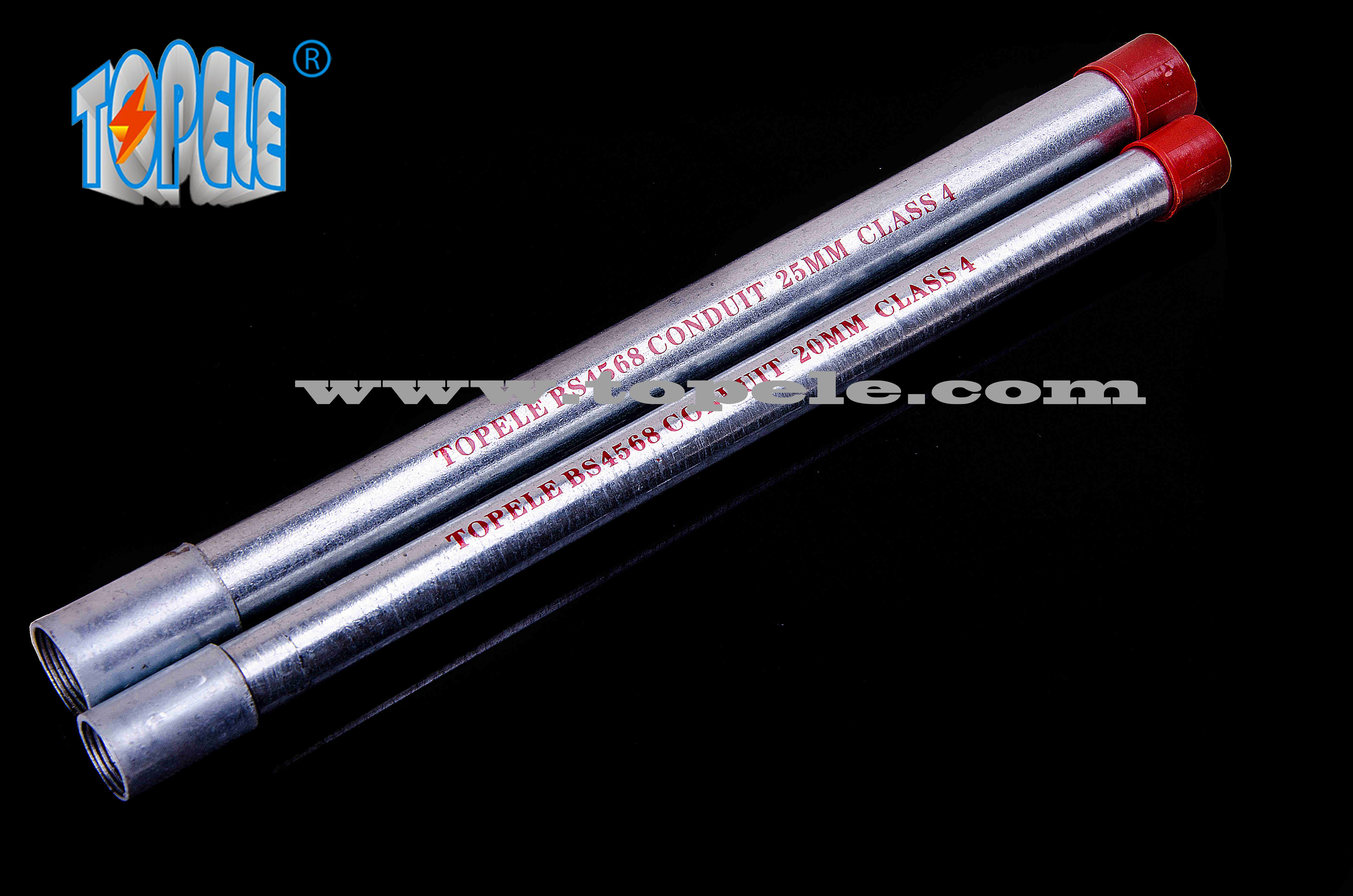

    BS4568 CONDUIT with a integral coupling and a protection cap

    • TOPELE BRAND BS4568 CONDUIT Protect insulated electrical conductors and cables
    • Galvanized steel construction provides shielding from magnetic fields and protection from impact damage and crushing
    • Electroplated couplings prevent zinc build-up
    • Designed for use with threaded connections
    • Brand Name: TOPELE
    • Length : 3.75 meters.
    • Material : Galvanized steel-class 3 / Hot-dipped Galvanized-class 4
    • Size: 16mm to 32mm
    • Thickness: 1.3mm---1.6mm
    • Filed name: BS4568 CONDUIT,BS4568 TUBE, BS4568 PIPE, GI PIPE, GI TUBE.



    Applications:

    TOPELE BS4568 CONDUIT is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This BS4568 CONDUIT is made of Pre-galvanized steel and has an organic coating inside.
    BS4568 CONDUIT provides a damage-resistant duct for electrical conductors and cables. This conduit shields internal wires from magnetic fields and features electroplated couplings to resist build up of zinc on the threads.


    Specifications:

    nominal diameter

    external diameter

    thickness of wall

    length

    packing

    weight/unit(kg)

    BS4568-1970 CONDUIT

    16mm

    16mm

    1.6mm

    3.75

    10pcs/bundle

    2.13

    20mm

    20mm

    1.6mm

    3.75

    10pcs/bundle

    2.72

    25mm

    25mm

    1.6mm

    3.75

    10pcs/bundle

    3.46

    32mm

    32mm

    1.6mm

    3.75

    10pcs/bundle

    4.50


    Remark: different thickness is available

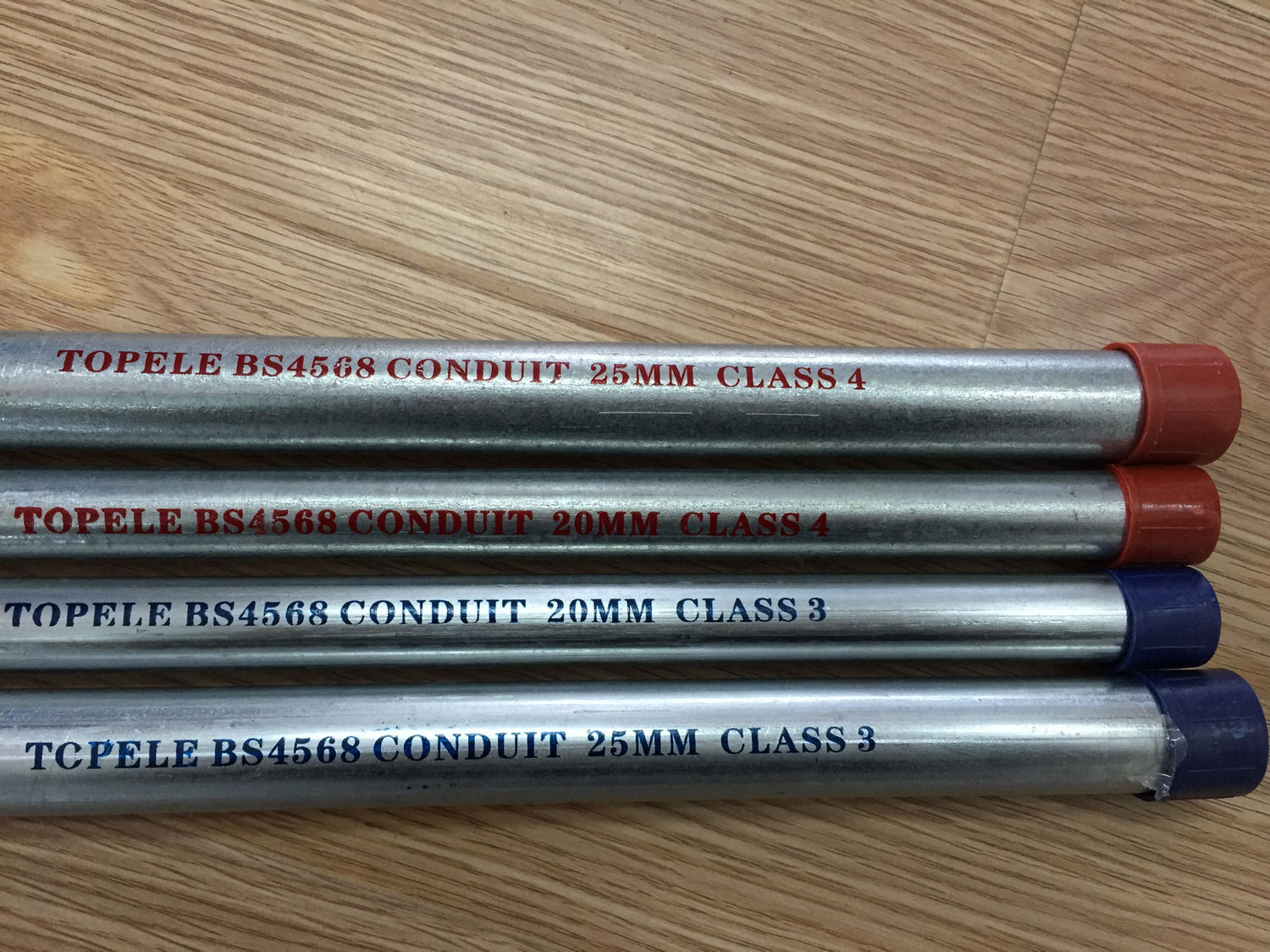

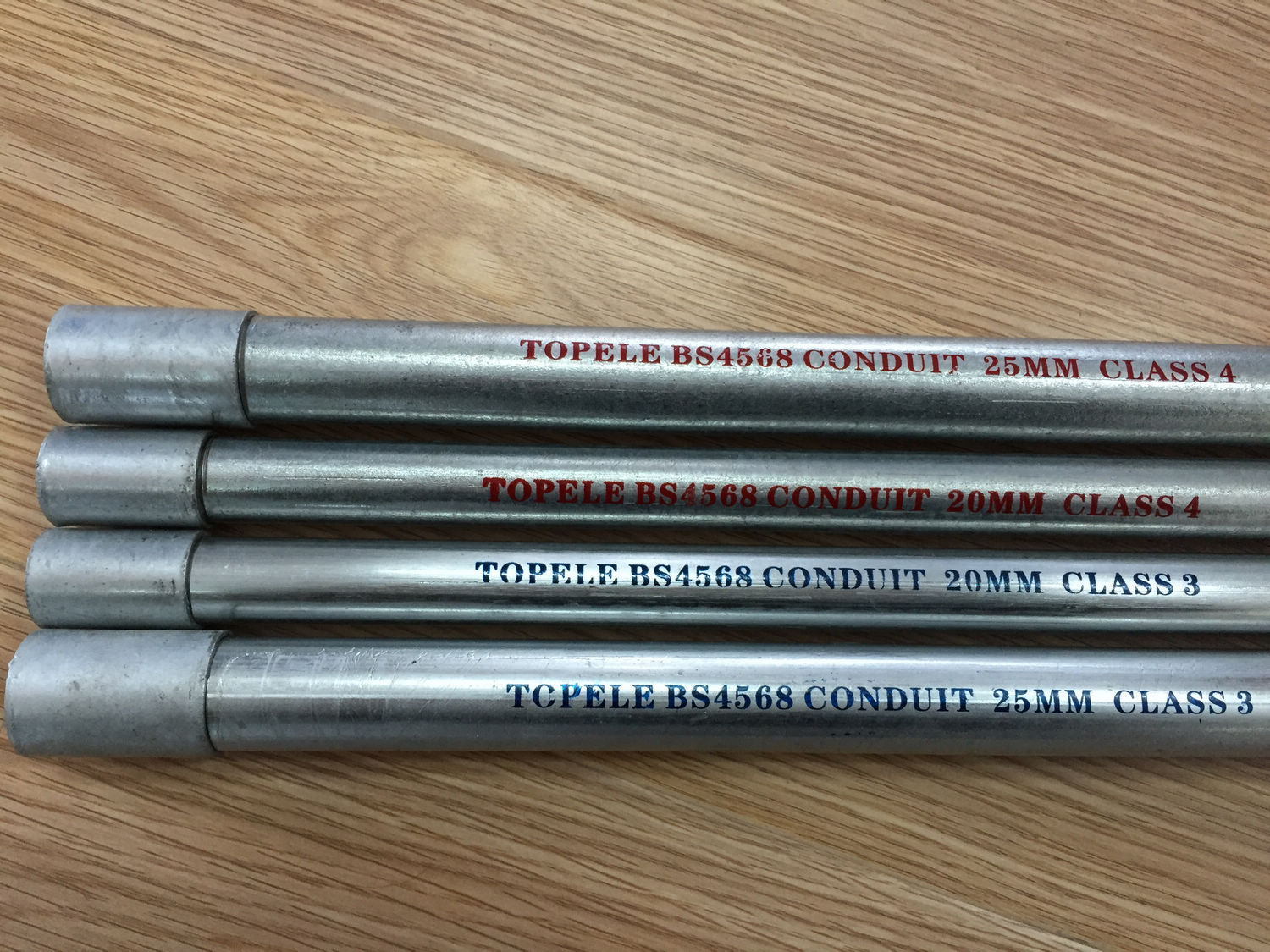

    Clear printing on the conduits :

    Plastic caps in different color are available


    20mm , 25mm Galvanized BS4568 Conduit Pipe , Steel Electrical Conduit GI Tube
    Please note the perfect loading and strong package , load as more as we can to save the sea freight for customer.


    Competitive Advantage:

    BS4568 CONDUIT
    +Quick Delivery: 15days for one 20ft container.
    +Competitive Price: As we control cost well.

    + Good Quality: ISO
    +Best Service: strong package, perfect loading.quality guarntee for 1 year, no damage, no rust, no weight torlerance.
