Electrical Metal Conduit Galvanized Steel BS4568 Tube GI Pipe

    Buy cheap Electrical Metal Conduit Galvanized Steel BS4568 Tube GI Pipe from wholesalers

    Buy cheap Electrical Metal Conduit Galvanized Steel BS4568 Tube GI Pipe from wholesalers
    • Buy cheap Electrical Metal Conduit Galvanized Steel BS4568 Tube GI Pipe from wholesalers
    • Buy cheap Electrical Metal Conduit Galvanized Steel BS4568 Tube GI Pipe from wholesalers

    Electrical Metal Conduit Galvanized Steel BS4568 Tube GI Pipe

    Ask Lasest Price
    Brand Name : TOPELE
    Certification : ISO
    Model Number : BS4568 CONDUIT
    Price : negotiable
    Delivery Time : 20 days for one 20ft container
    Payment Terms : T/T, L/C at sight
    Supply Ability : 200 tons one month
    • Product Details
    • Company Profile

    Electrical Metal Conduit Galvanized Steel BS4568 Tube GI Pipe

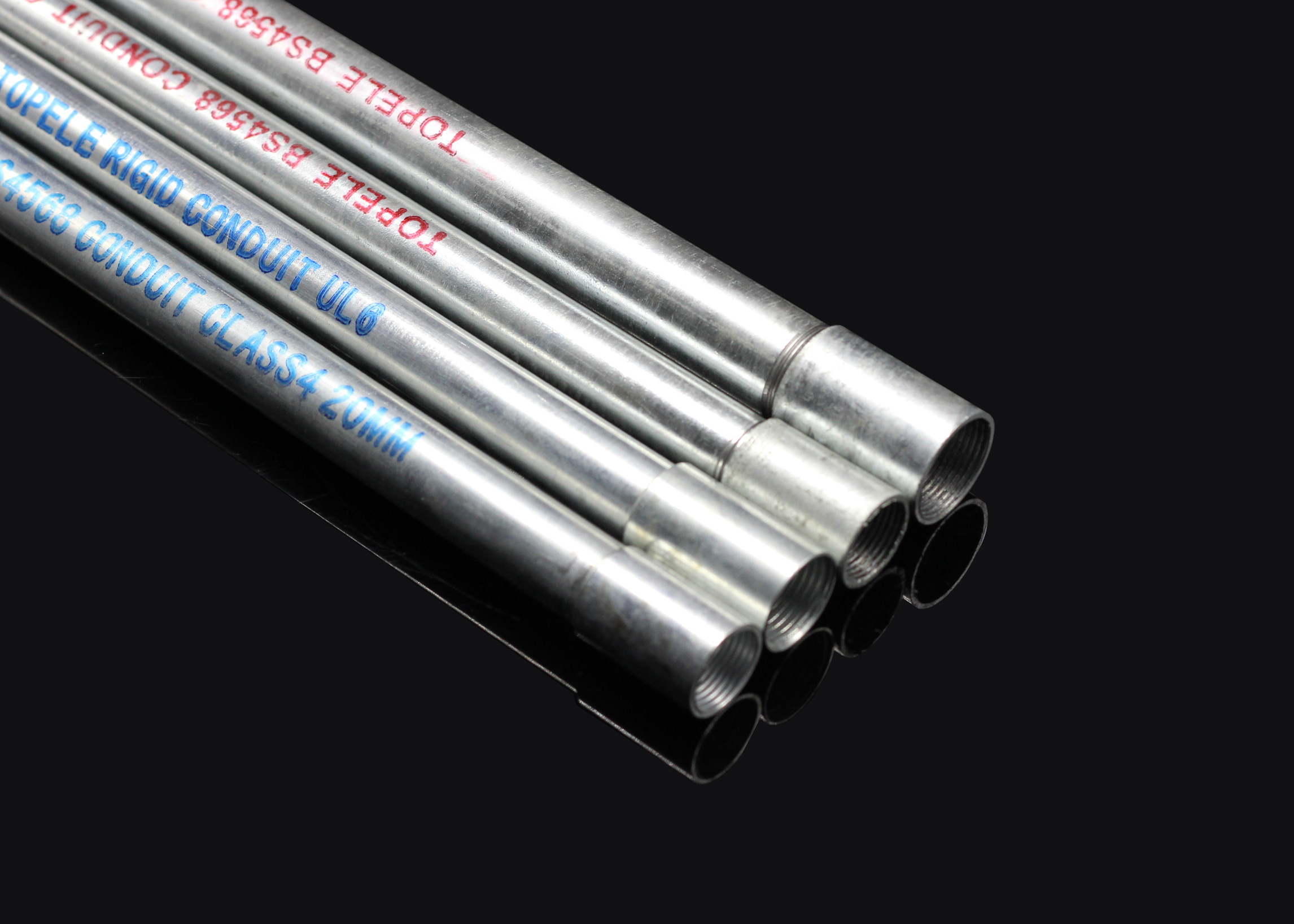

    Electrical metal conduit Galvanized Steel BS4568 Tube GI Pipe


    BS4568 CONDUIT with a integral coupling and a protection cap

    • TOPELE BRAND BS4568 CONDUIT Protect insulated electrical conductors and cables
    • Galvanized steel construction provides shielding from magnetic fields and protection from impact damage and crushing
    • Electroplated couplings prevent zinc build-up
    • Designed for use with threaded connections
    • Brand Name: TOPELE
    • Length : 3.75 meters.
    • Material : Galvanized steel-class 3 / Hot-dipped Galvanized-class 4
    • Size: 16mm to 32mm
    • Thickness: 1.3mm---1.6mm
    • Filed name: BS4568 CONDUIT,BS4568 TUBE, BS4568 PIPE, GI PIPE, GI TUBE.



    Applications:

    TOPELE BS4568 CONDUIT is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This BS4568 CONDUIT is made of Pre-galvanized steel and has an organic coating inside.
    BS4568 CONDUIT provides a damage-resistant duct for electrical conductors and cables. This conduit shields internal wires from magnetic fields and features electroplated couplings to resist build up of zinc on the threads.


    Specifications:

    nominal diameter

    external diameter

    thickness of wall

    length

    packing

    weight/unit(kg)

    BS4568-1970 CONDUIT

    16mm

    16mm

    1.6mm

    3.75

    10pcs/bundle

    2.13

    20mm

    20mm

    1.6mm

    3.75

    10pcs/bundle

    2.72

    25mm

    25mm

    1.6mm

    3.75

    10pcs/bundle

    3.46

    32mm

    32mm

    1.6mm

    3.75

    10pcs/bundle

    4.50


    Remark: different thickness is available


    Advantages of using steel conduit:
    • Protection against impact at all temperatures
    • Deflects hand-driven nails and screws and doesn’t stretch or tear
    • Highest yield and tensile strengths
    • Doesn’t burn, contribute to smoke volume, emit potentially escape-inhibiting fire gases, or add to fuel load or flame spread
    • Noncombustible and can be fire-stopped with common building materials
    • Provides an excellent electrical path to ground, eliminating the need for supplementary equipment grounding
    • Reduces EMF by up to 95% at power frequencies
    • Compatible coefficient of expansion with most construction materials
    • Adaptable and can easily accommodate wiring changes
    • Fully recyclable

    Competitive Advantage:

    BS4568 CONDUIT
    +Quick Delivery: 15days for one 20ft container.
    +Competitive Price

    + Good Quality: ISO
    +Best Service: fast delivery, strong package, good price, timely and effective communication
    +Powerful Solution: fast and effective solution to problem
