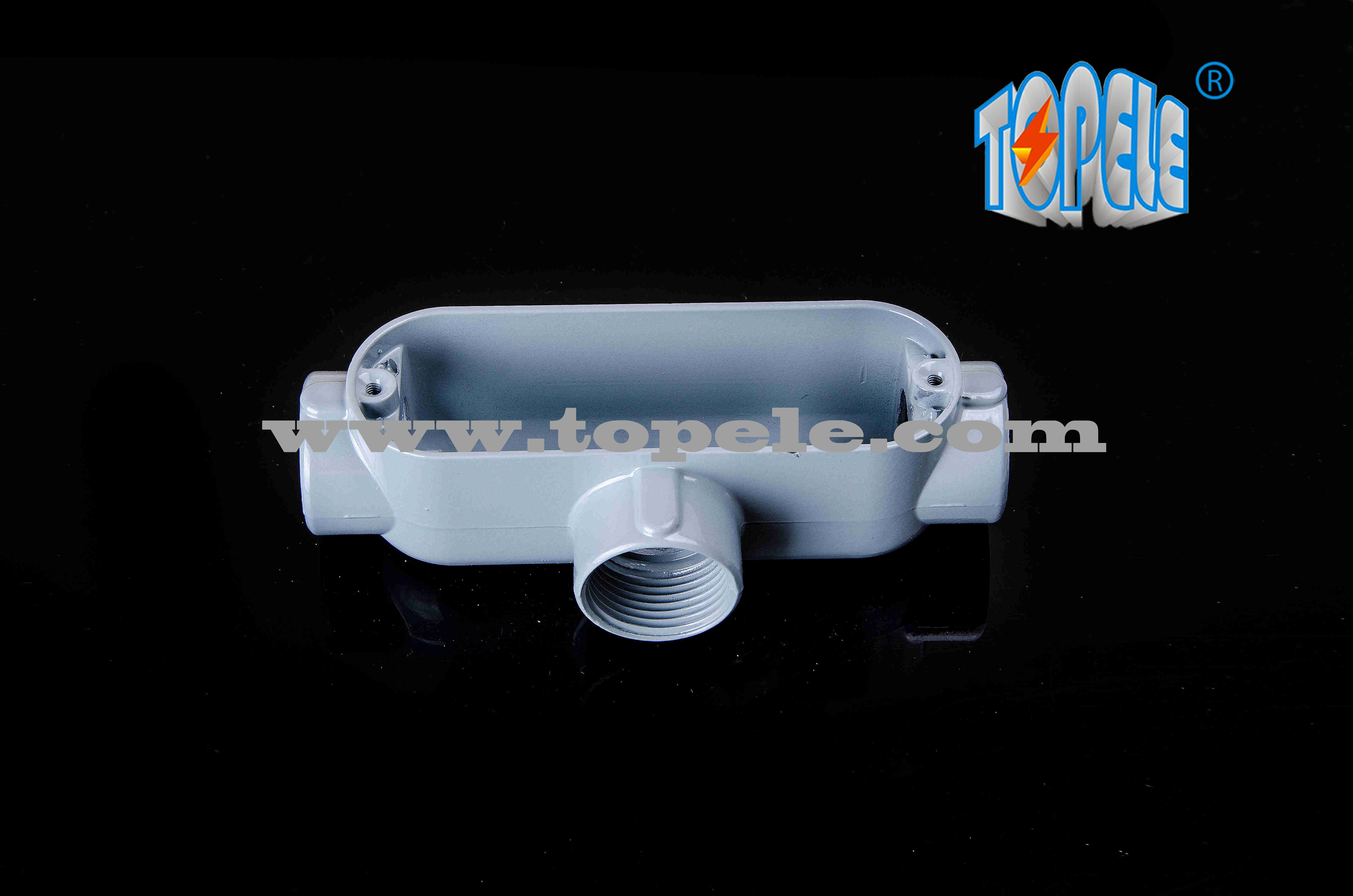

1/2" To 4" / Aluminum Threaded Conduit Body T Type Conduit Body /
High Grade Conduit wire Body
Descrition:
TOPELE Rigid Conduit Bodies T type
The TOPELE Threaded Aluminum Conduit Bodies are designed for
gaining access to raceway interiors for wire pulling, Threaded
style conduit bodies are for use on rigid conduit.splicing and
maintenance.
The conduit bodies are made with corrosion-resistant copper-free
die-cast aluminum for strength and are suitable for use indoors and
outdoors.
Applications:
TOPELE Rigid Conduit Bodies T type
Designed to gain access to raceway interiors for wire pulling,
splicing & maintenance
*For use with IMC and rigid conduit
*Serve as pulling fittings
*Make bends in conduit system
*Provide openings for splicing
*Connect and change direction of conduit runs
*Allow connections for branch runs
*For indoor and outdoor applications
*Corrosion-resistant copper-free die-cast aluminum construction
*Brand Name: TOPELE
Feature:
*Flat back design for greater wiring capacity and surface mounting
*Complete interchangeability with other manufacturers’ Form T
conduit bodies
*Internal volume and maximum wire capacity clearly marked on
castings
*State of the art powder coat finish for maximum durability
*Flat back design for easy mounting close to walls
*May be used on aluminum or steel conduit
Specifications:
TOPELE Rigid Conduit Bodies T type
· Assembled Depth (in.) : 4.25 in
· Assembled Height (in.) : 1.50 in
· Assembled Width (in.) : 2 in
· Bend (Degrees) : 0
· Electrical Product Type : Box/Conduit/Fitting Accessory
· Fitting type : Conduit body
· Indoor/Outdoor : Indoor/Outdoor
· Material: Aluminum
· Paintable/Stainable : Yes
· Product Depth (in.) : 4.25
· Product Height (in.) : 1.50
· Product Weight (lb.) : 0.201
· Product Width: 2"
· Trade Sizes: from 1/2" to 4"
| T-50 | 1/2" | screws Type |
| T-75 | 3/4” | screws Type |
| T-100 | 1” | screws Type |
| T-125 | 1-1/4” | screws Type |
| T-150 | 1-1/2" | screws Type |
| T-200 | 2" | screws Type |
| T-250 | 2-1/2" | screws Type |
| T-300 | 3” | screws Type |
| T-350 | 3-1/2” | screws Type |
| T-400 | 4” | screws Type |
Competitive advantage :
save time and money by eliminating costly bending of large conduits
to change the directions of conduit runs. Removable cover and
gasket allow for easy wire pulling and feed through. Domed aluminum
cover provides additional cubic capacity ,Commonly used as an
economical convenience box when extra wire space is needed. Powder
coated finish and watertight gasket create a weatherproof
installation. Their removable cover makes general maintenance and
future wire pulling easy and convenient.
