UL Standard EMT Conduit Pre-Galvanized EMT Tuberia OEMDescription:

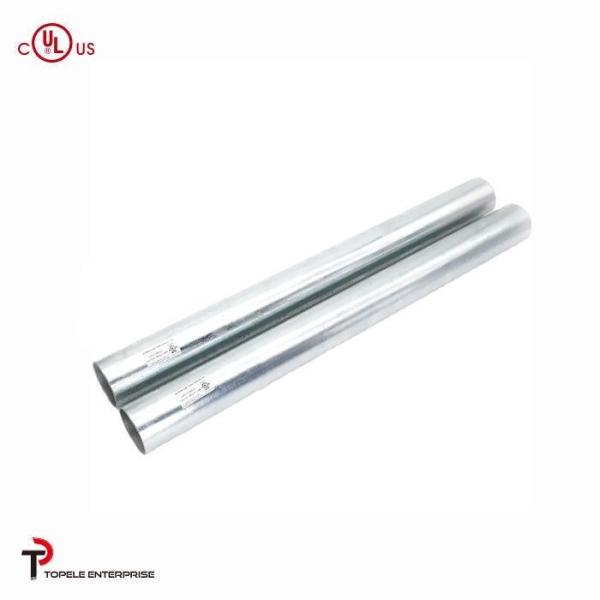

Hot Dipped Galvanized Electrical Steel EMT conduit pipe
EMT conduit pipe is one of the lightest and thinnest threading pipe
in American standard. The pipe head has no thread, and it is
connected with set screw type connector which is mostly used in
indoor decoration
- The main markets of EMT are Latin America, South America, America,
dubai and other middle eastern countries
- Corrosion resistance
- long-lasting protection
- Interior surface free from defects so that easy to wire pulling
- 10' lenghts, with special lenght available
- steel coupling and connector produced in -house
- uniform wall thicknes
Specifications:
- Standard: 1/2"-4" EMT CONDUIT X 10' / UL 797 and ANSI C80.3
- Brand Name: TOPELE
- Color Family : Metallics
- Conduit type : Metallic
- Type : Conduit
- Flexible : No
- Length : 10 ft.
- Material : Galvanized steel / Hot-dipped Galvanized
- Size: from 1/2" to 4 "
| Nominal diameter | External diameter | Wall Thickness | Length | Packing | Weight/Unit(kg) | |
|
| 1. EMT Tube(Electrical metallic tubing) standard pipe | | | |
| 1/2" | 17.93mm | 1.07mm | 3.05m | 20pcs/bundle | 1.36 | |
| 3/4" | 23.42mm | 1.24mm | 3.05m | 15pcs/bundle | 2.07 | |
| 1" | 29.54mm | 1.45mm | 3.05m | 10pcs/bundle | 3.06 | |
| 1-1/4" | 38.35mm | 1.60mm | 3.05m | 5pcs/bundle | 4.56 | |
| 1-1/2" | 44.2mm | 1.65mm | 3.05m | 5pcs/bundle | 5.28 | |
| 2" | 55.8mm | 1.65mm | 3.05m | 5pcs/bundle | 6.78 | |
| 2-1/2" | 73.03mm | 1.83mm | 3.05m | 1pcs/bundle | 9.8 | |
| 3" | 88.9mm | 1.83mm | 3.05m | 1pc | 11.98 | |
| 3-1/2" | 101.6mm | 2.11mm | 3.05m | 1pc | 15.79 | |
| 4" | 114.3mm | 2.11mm | 3.05m | 1pc | 17.8 | |
Applications:
TOPELE EMT CONDUIT is designed to protect and route cables and
conductors. It can be installed either exposed or concealed.
Install it inside or outside using rain-tight fittings. This EMT
CONDUIT is made of Pre-galvanized steel and has an organic coating
inside.
From thickness, TOPELE have standard and thiner for customer
choose,the thickness can also be customized according to the
customer's requirements.
From the surface treatment, TOPELE have hot dipped Galvanized (HDG)
and the Pre- galvanized.
