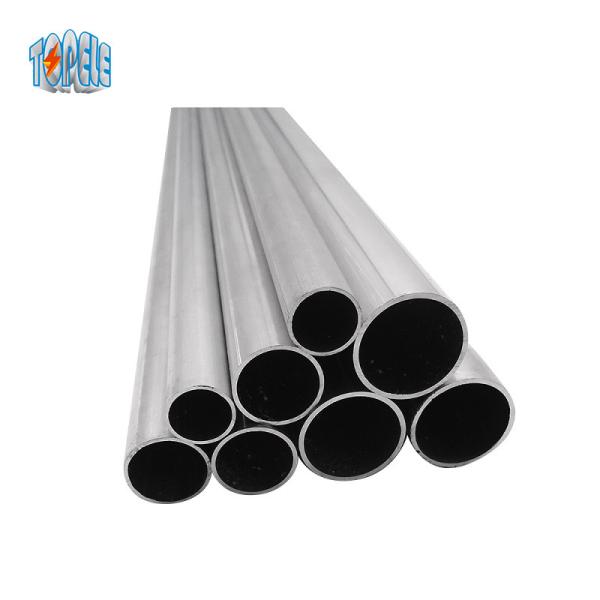

HDG Galvanized Steel EMT Conduit Pipe American Standard

Galvanized Steel Pipe Steel Tube EMT Conduit

Electrical Steel Conduit Galvanized Steel Pipe Supplies in China

Electrical Metallic Tubing EMT Conduit Pipe Description:

UL-797, CSA C22.2 No. 83.1, ANSI® C80.3

1. Material: Galvanized steel
2. Size: 1/2”-4”
3. Surface treatment: Pre-Galvanized or Hot dip galvanized(HDG)
4. Length: 3050mm or according to customer’s requirement
5. Ends: No threaded or threaded two ends,with one socket on the one end, a plastic cap on another end.
6. Usage: EMT conduit is designed to protect and route cables and conductors
7. Packaging: EMT conduits tied into small bundles with steel straps, then covers with white plastic bag.
8. Market: USA, Panama, Peru, Venezuela, Iraq, Ecuador,Colombia.
9. Application: It can be installed either exposed or concealed. Install it inside or outside using raintight fittings. This EMT conduit pipe is made of anunthreaded galvanized steel and has an organic coating inside.
10. Features: Surface treatment is smooth, have good resistant to corrosion.

EMT tubing standard pipe

1/2" 17.93mm 1.07mm 3.05m
3/4" 23.42mm 1.24mm 3.05m
1" 29.54mm 1.45mm 3.05m
1-1/4" 38.35mm 1.60mm 3.05m
1-1/2" 44.2mm 1.65mm 3.05m
2" 55.8mm 1.65mm 3.05m
2-1/2" 73.03mm 1.83mm 3.05m
3" 88.9mm 1.83mm 3.05m
3-1/2" 101.6mm 2.11mm 3.05m
4" 114.3mm 2.11mm 3.05m

EMT tubing thin pipe
1/2" 17.93mm 0.85mm 3.05m
3/4" 23.42mm 1.0mm 3.05m
1" 29.54mm 1.1mm 3.05m
1-1/4" 38.35mm 1.30mm 3.05m
1-1/2" 44.2mm 1.30mm 3.05m
2" 55.8mm 1.40mm 3.05m

Electrical metallic tubing (EMT) is made from coated steel or aluminum and is a more economical and thinner-walled option than other conduit. This conduit type doesn't offer the same protection as rigid metal conduit but is lighter and can be paired with conduit fittings, eliminating the need for threading.

​​

Advantage

Price: Aluminum EMT is 30% lower than Steel.

Weight: Aluminum EMT is 70% lighter than Steel.

Installation: Aluminum EMT is 50% Less than Steel.

Surface Treatment: Aluminum EMT can be used with/without Oxidation, Steel must be galvanized,
