    ISO Certificate Conduit Fittings Of Malleable Iron Rigid Insulated Grounding Bushing

    Ask Lasest Price
    Brand Name : TOPELE
    Model Number : CB
    Certification : ISO CERTIFICATE
    Price : negotiable
    Payment Terms : T/T, irre. L/C at sight
    Supply Ability : 200,000,00pcs per month
    Delivery Time : 30days, depend on the final order quantity.
    • Product Details
    • Company Profile

    ISO Certificate Conduit Fittings Of Malleable Iron Rigid Insulated Grounding Bushing


    IMC Conduit And Fittings Of Malleable Iron Rigid Insulated Grounding Bushing


    PDF Catalogue:TOPELE Insulated Grounding Bushing.pdf


    Description:

    Rigid Bushing - Malleable Iron

    1.Main body Material:Malleable Iron

    2. Grounding lug: Aluminum alloy
    3.Size:1/2" to 4"
    4.Plastic Liner prevents damage to wire insulation .


    Application:


    Used with a locknut to terminal threadless rigid and IMC conduit to a box or enclosure and to provide a smooth pulling surface. Thermoplastic liner prevents damage to wire insulation. Line rated at 150 degree.


    Features:

    The plastic liner won't chip, crack, swell or shrink. It resists corrosion, chemecals, and temperature extremes.

    Set-screw provided with each fitting locks bushing in any desired position


    Specifications:

    Cat #Trade Size
    CB-50M1/2"
    CB-75M3/4"
    CB-100M1"
    CB-125M1-1/4"
    CB-150M1-1/2"
    CB-200M2"
    CB-250M2-1/2"
    CB-300M3"
    CB-350M3-1/2"
    CB-400M4"


    Dimensions in Inches:

    Dimension A IN Inches: 1-7/8"

    Dimension B in Inches: 3/4"

    Dimension Cin Inches: 1-15/16"

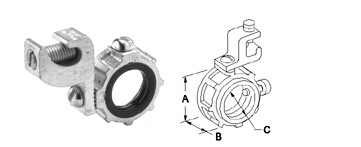

    Refer to the Image:

    IMC Conduit And Fittings Malleable Iron Rigid Insulated Grounding Bushing


    Competitive Advantage:


    TOPELE’S threaded insulating bushings easily screw on threaded conduits. Their smooth throat design ensures that wires will not be damaged during wire pulling.
