Brand Name : | TOPELE |
Model Number : | CH |
Certification : | ISO CERTIFICATE |
Price : | negotiable |
Payment Terms : | T/T, irre. L/C at sight |
Supply Ability : | 500000pcs per month |
Delivery Time : | 30days, depend on the final order quantity. |
Custom Electro-galvanized Steel Standard Conduit Hangers (Bolt and
Nut) Unistrut Channel Fittings

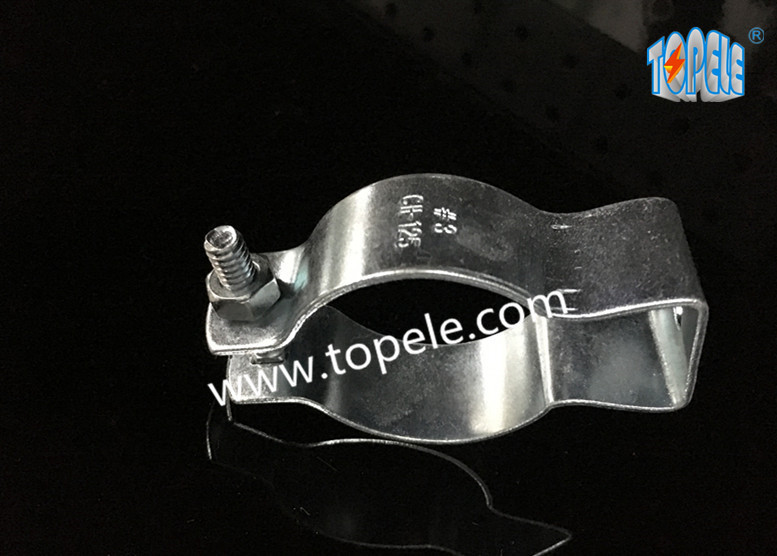

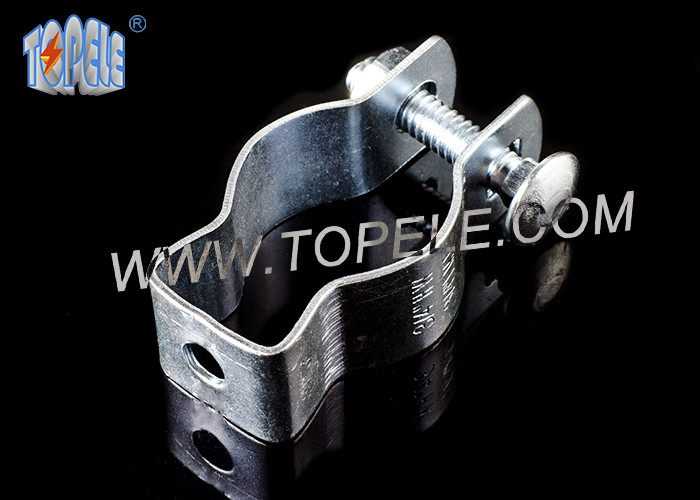

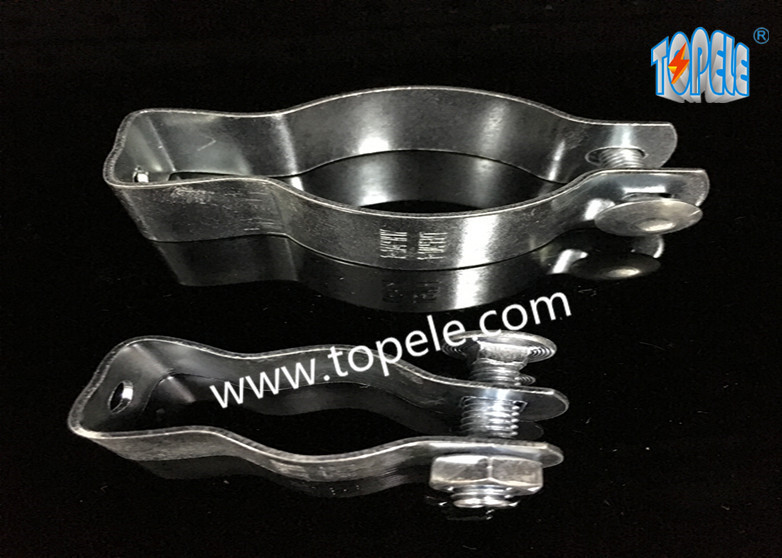

Conduit hanger
Material: electro-galvanized steel
Material: Steel with Steel Nut & Bolt
Finishing: Galvanized
Size:2"
1/2"-4"Conduit Hanger Available
Field Names:
Conduit hangers, cowboy hangers, mae west hangers, minnies, stand
off straps, standard conduit hangers, minis, pipe hangers.
Applications:
These conduit hangers are used in both wet and dry locations to
support runs of rigid/IMC and EMT conduits from ceilings and walls.
Specifications:
Part number | EMT Conduit | Rigid Conduit | Std. |
CH-50 | 1/2” | 3/8” or 1/2” | 50 |
CH-75 | 3/4” | 3/4” | 25 |
CH-100 | 1” | 1” | 25 |
CH-125 | 1-1/4” | 25 | |
CH-150 | 1-1/2” | 1-1/4” | 25 |
CH-175 | 1-1/2” | 25 | |
CH-200 | 2” | 2” | 25 |
CH-250 | 2-1/2” | 2-1/2” | 10 |
CH-300 | 3” | 3” | 10 |
CH-350 | 3-1/2” | 3-1/2” | 10 |
CH-400 | 4” | 4” | 5 |
![]() |
