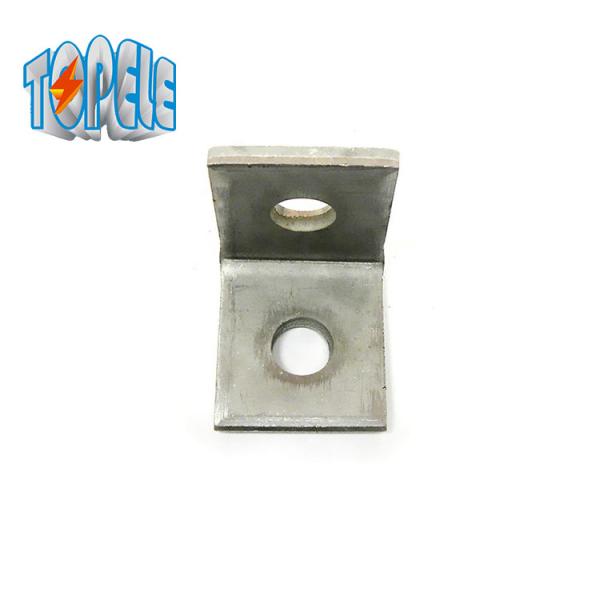

2 hole end angle Connector for Strut Unistrut Connecting Plate

Product Details

2 hole end angle Connector for Strut Unistrut Connecting Plate

Place of Origin:Zhejiang,China

Brand Name:Topele

Model Number:TP-301

Structure:Single-side Bracket

Standard or Nonstandard: standard

Product name:2 hole end angle Connector for Strut

Surface treatment:Hot Dipped galvanized

Thickness:3mm-5mm

Certification:ISO9001:2008

Keywords:corner clamp

Material:Stainless steel 201 or 304 or 316

Size:customized

Supply Ablity:10000 pieces per Month

Packing:Each item of product packed inside a bubble bag, then inside the standard carton,we could arrange pallet if you want.

Package Safety: Anti-theft & Anti-riot

QC Pass Rate:100% inspection before delivery

Delivery Way:By vessel, by air, by express,it depends on you.

Shipping Port:Shanghai,Ningbo,China

Payment term :T/T 50% to confirm the order, 50% balance payment upon copy of BL.

Description:

2 hole end angle Connector for Strut Unistrut Connecting Plate

1.Thickness is 6.35mm, hole spacing on center is 47.6mm, hole spacing from end is 20.6mm, width is 40 mm and steel grade is Q235 for all general fittings but special specification.

2.Hole diameter is 11mm for M10 fittings,13mm for M12 fittings but special specification.

3.The series are all manufacture from low-carbon steel with galvanized finish.

4.The series are also available in stainless steel. If you need special application fittings, contact us for size.

Applications:

2 hole end angle Connector for Strut Unistrut Connecting Plate

Steel plate Fittings are mainly used to connect the strut channels on the pipe supporting Systems
